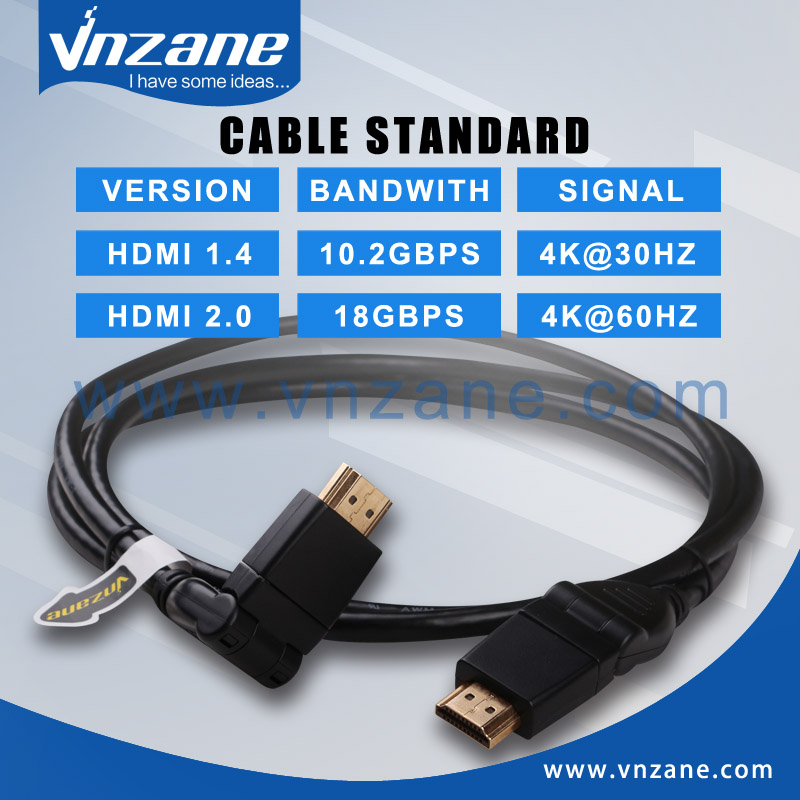

HDMI Cable 360° Male to 360° Male VN-H860
Description
VNZANE HDMI Cable for HDTV, Home HDMI Devices
Application
Suitable for HDTV, Home Theater, DVD Player, Projector.PS3, Xbox360 and other HDMI devices
Data Specification:
| Connector | Full 19Pin 24K 1μ/2μ/3μ/5μ Gold Plated | ||
| Plug Mould | Plastic Plug, Color Optional | ||
| Wire Specification | (1P+AL Foil+Mylar)x5+4C+D+AL+ABD | ||
| Conductor Gauge | 32/30/28/26/24/23AWG ect | ||
| Insulation | FPE/HDPE | ||
| Jacket | PVC | ||
| Ferrite | With 2 Ferrite | ||
| Nylon/Cotton Mesh | Style and Color Optional | ||
| Cable OD | 6.0 mm | ||
| Length | 1-50M | ||
Technical Characteristics:
| Voltage | DC300V 5M Ohm/10ms |
| Insulation Resistance | 10M Ohm Min. |
| Contact Resistance | 2 Ohm Max. |
| Working Temperature | -20℃~80℃ |
| Data Transfer Rate | Up to 10.2 Gbps |
| Diffetential Impedance | 100±10 Ω (TDR) |
| insertion Force | 44.1 N Max. |
| Withdraw Force | 9.8 N Min. |
| Support |
3D, 4K, Ethernet Channel, Audio Return Channel,1080P Full HD Resolutio |
