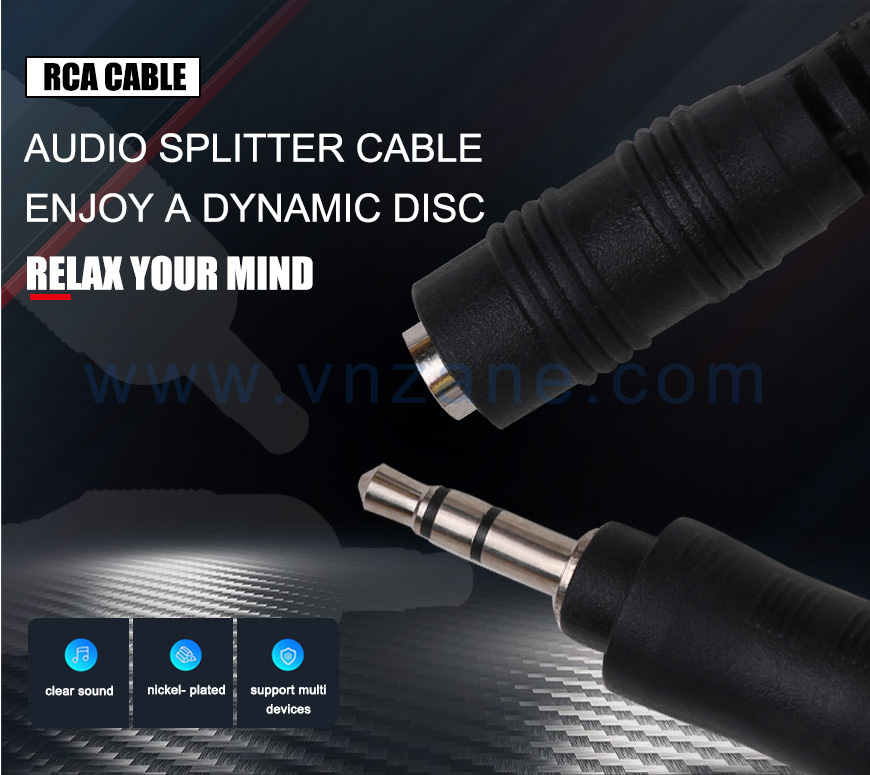

RCA Cable Female 3.5mm to Male 3.5mm VN-R305
Description
Application:
DVD (audio) player; SA-CD player
CD player; D-VHS player
Game console; A/V receiver
Digital video recorder
Satellite receiver; Digital cable box
Computer sound card
Home theater personal computer
Specification
| Conductor | High-conductive copper clad steel, Tinned copper, oxygen-free copper (Optional) |
| Wire specification | 7/0.10, 7/0.12, 10/0.10 or at request |
| Connector | Gold plated or nickel-plated connector (Optional) |
| Outer diameter | 3.8~11.5mm |
| Insulation | PE, PVC (Optional) |
| Shield | Aluminum-Mylar foil, tinned copper/bare copper/copper clad steel wire shield |
| Jacket | PVC |
| Color | Black/white/transparent blue/red/yellow/white or at request |
| Length | 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 5m, 10m, or at request |
Electrical Characteristics
| Contact Resistance | 2.0 OHM Max |
| Working Temperature | -25℃ ~ +85℃ |
Mechanical Characteristics
| Insertion Force | 44.1 N Max. |
| Withdraw Force | 9.8 N Min. |
