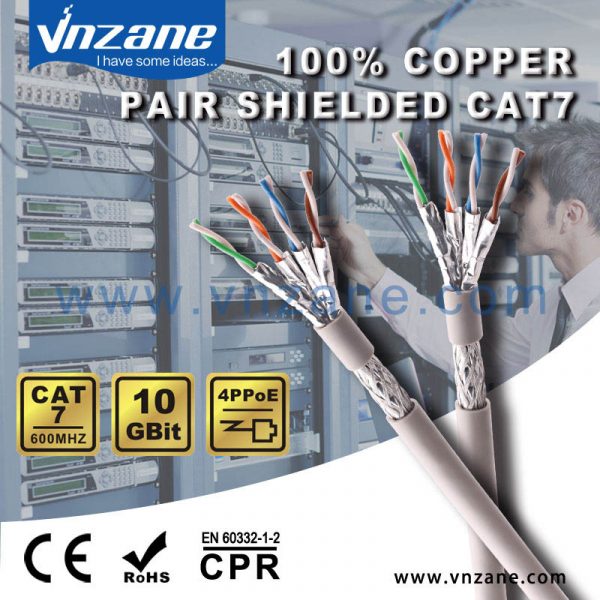

Cat7 SFTP Cable VN-L507
Description
SFTP Cat 7 Cable for Faster Transmission with Reasonable Pricing
Instruction
Cat7 cable with pair shield construction design have excellent shielding performance of anti-EMI. easy to realize 600Mhz bandwidth. All performance parameters comply to the requirement for Cat7 of IEC 61156-5 & EN 50173
Application
Wiring cable for integrated network and CCTV system
Electrical Specification
| Dielectric strength | 2.5kv dc-2s |
| Conductor resistance | Max.6.85ohm/100mt at 20℃ |
| Max ring resistance | 16.8 ohm/100m |
| Max mutual capacitance | 560pf/100m |
| Max capacity unbalance | 330pf/100m |
| Impedance | 100±15%Ω at 1~100MHz |
Data Specifications
| Inner Conductor | Solid Bare Copper |
| Conductor Dia. | 23AWG |
| Insulation | PE |
| Insulation Dia. | 1.13±0.02mm |
| Jacket | PVC |
| Nominal OD. | 7.0±0.2mm |
| Frequency (Mhz) | Return Loss (dB) | Attenuation (dB/100m) | NEXT (dB) | PS-NEXT (dB) | ELFEXT (dB) | PS-ELFEXT (dB) |
| 4 | 23 | 3.74 | 78 | 75 | 78 | 75 |
| 8 | 24.5 | 5.24 | 78 | 75 | 75 | 72.9 |
| 10 | 25 | 5.86 | 78 | 75 | 74 | 71 |
| 16 | 25 | 7.41 | 78 | 75 | 69.9 | 66.9 |
| 20 | 25 | 8.29 | 78 | 75 | 68 | 65 |
| 25 | 24.3 | 9.29 | 78 | 75 | 66 | 63 |
| 31.25 | 23.6 | 10.41 | 78 | 75 | 64.1 | 61.1 |
| 62.5 | 21.5 | 14.88 | 15.5 | 75.5 | 58.1 | 55.1 |
| 100 | 20.1 | 19.02 | 72.4 | 72.4 | 54 | 51 |
| 150 | 18.9 | 23.56 | 69.8 | 69.8 | 50.1 | 47.2 |
