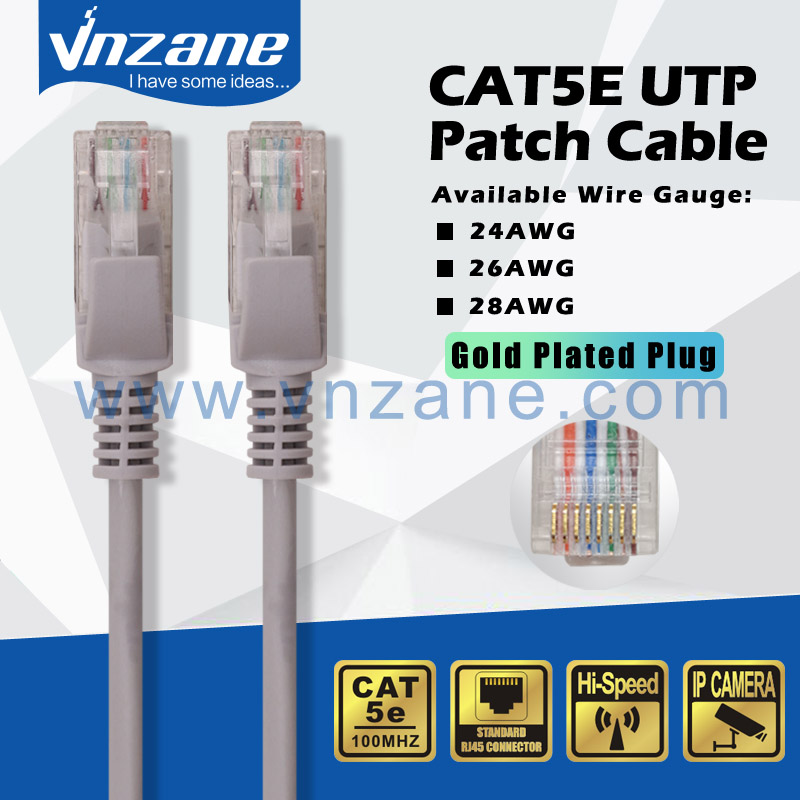

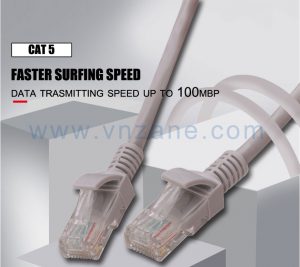

Cat5e UTP Patch Cable VN-N501
Description
Instruction

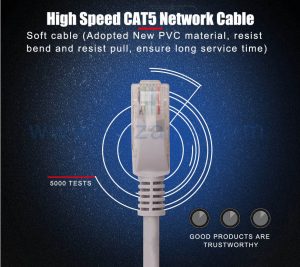

Cat 5e UTP patch cord made by high quality patch cable and RJ45 modular plug. Head of patch cord with protecting jacker can provide strain relief, help control cable bend and securely retain wires, provide multi-color, prolong operating life, easily use mark.
Application & Transmission Performance

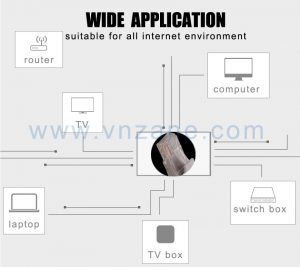

Wiring cable for integrated network. Fully comply with and exceed TIA/EIA-568-B&ISO/IEC 11801 Cat 5e connect hardware requirements.
Electrical Specification
Dielectric strength | 2.5kv dc-2s |
Conductor resistance | Max.9.380ohm/100mt at 20℃ |
Max ring resistance | 16.8 ohm/100m |
Max mutual capacitance | 560pf/100m |
Max capacity unbalance | 330pf/100m |
Impedance | 100±15%Ω at 1~100MHz |
Voltage Rating | ≤80Vac |
Currect Rating | ≤1.5V |
Insulation Resistance | ≥500MΩ |
Contact Resistance | ≤10MΩ |
Data Specifications
Inner Conductor | TC, O. F. C, CCA |
Conductor Dia. | 24AWG |
Insulation Dia. | 0.91±0.05mm |
Inner Jacket | PVC |
Outer Jacket | PE |

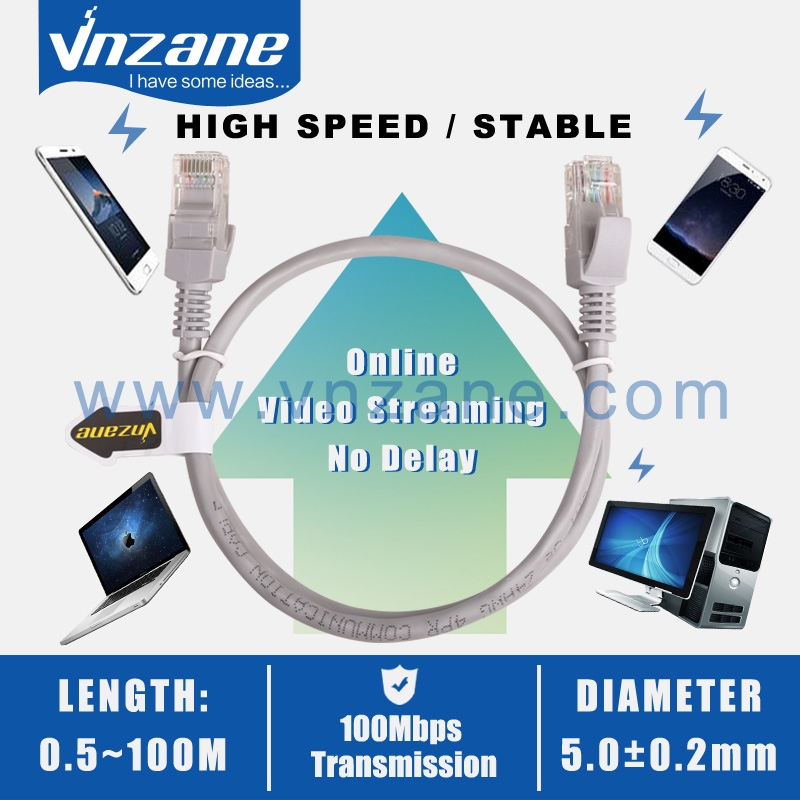

Nominal OD. | 5.0±0.2mm |
Length | 1-100m |
Wiring | 568A, 568B |

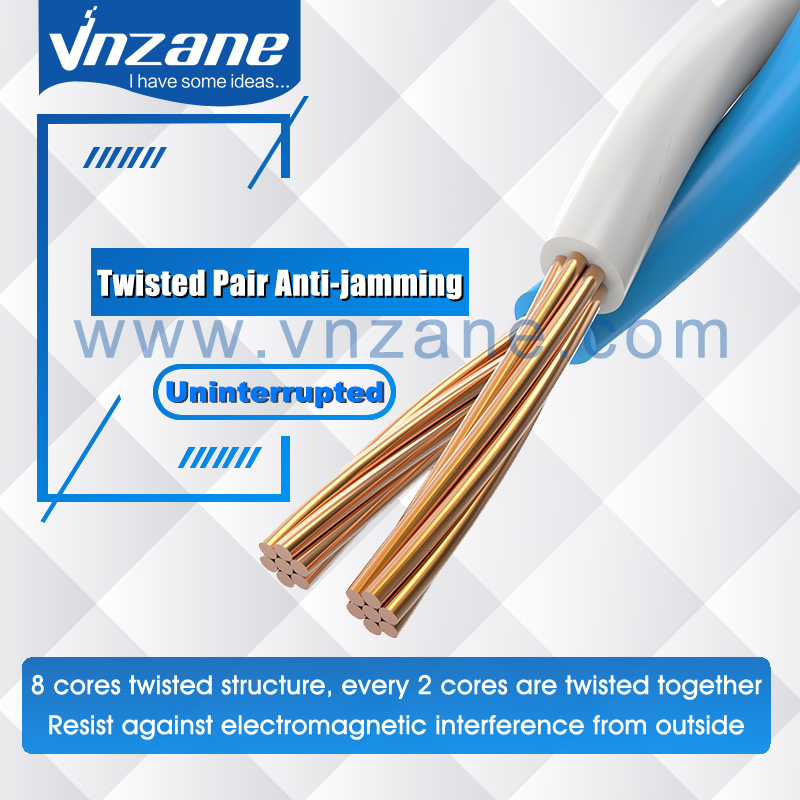

Pairs | 4 pairs |
Pairs Color Code | |
Pair1 | Blue-white/blue |
Pair2 | Orange-white/Orange |
Pair3 | Green-white/Green |
Pair4 | Brown-white/Brown |
Physical Parameters
Operating Temperature | -20-60℃ |
Flammability Rating | CMX/CM/CMR |
Operating Area | Working Area |
Mechanical Parameters
Plug Insertion Life, Minimum | ≥1000 times |
RJ45 Modular Plug Material | Polycarbonate |
Outlet/Module Contact Plating | Gold Plating |
