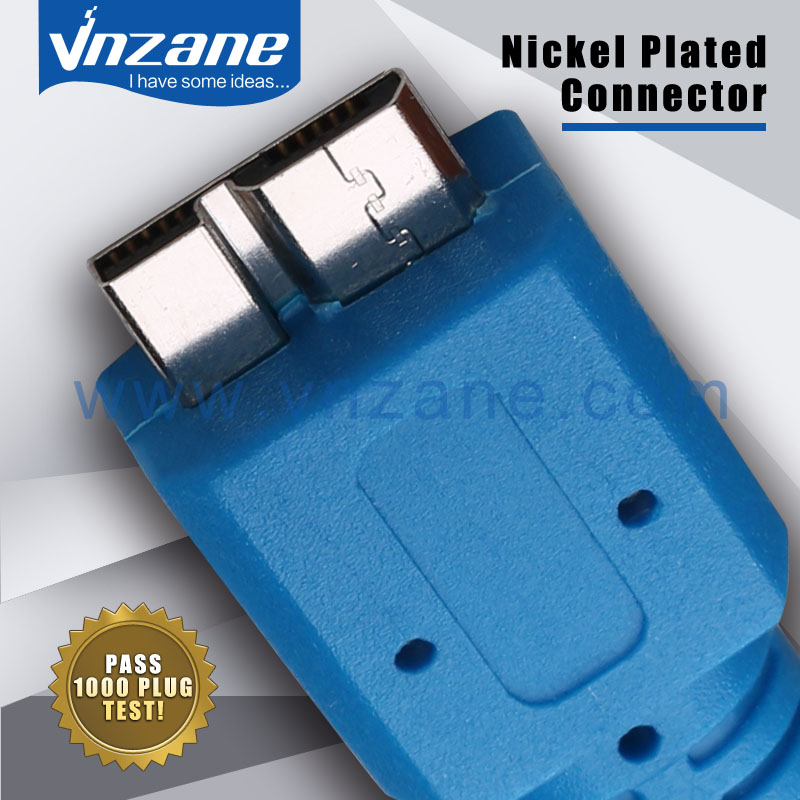

USB3.0 Male to Micro Cable VN-U505
Description
Application:
External drive
High resolution webcam
Video monitor
USB interface of a digital camera, digital camera
Blu-ray drives
Card reader equipment
Feature
Feature |
USB 3.0 |
Date Rate |
Super speed (5.0Gbps) additional |
Data Signal |
SS OUT Differential Signal: 1 Pair |
Connector Signals |
4 wires: Super speed |
Bus Protocol |
No polling |
Power Control |
Configuration at multiple link levels |
Power Supply to Bus |
Max. 900 mA |
Description
Rated temperature |
80℃ |
Conductor |
Stranded tinned cooper |
Insulation |
RoHS compliant PVC/PE |
Color |
Blue/Black/White/Gray/Transparent or on request |
Reference |
UL2725 & USB3.0 specification |
Electrical Characteristics
DC resistance (20℃) |
28AWG≤237.25Ω/KM |
Insulation resistance |
FOAM-PE, PE: AC-100V 100MΩ/KM MIN. at 20℃ |
Differential Impedance |
90±7Ω |
Contacts Differential Impedance |
90±15Ω |
Intra-pair Skew |
≤15ps |
Insertion loss |
≤-25 dB(7.5GHz) |
NEXT(3.0 to 3.0) |
≤-23 dB(3.0-7.5GHz) |
NEXT(2.0 to 3.0) |
≤-15 dB(3.0-7.5GHz) |
FEXT(2.0 to 3.0) |
≤-15 dB(3.0-7.5GHz) |
