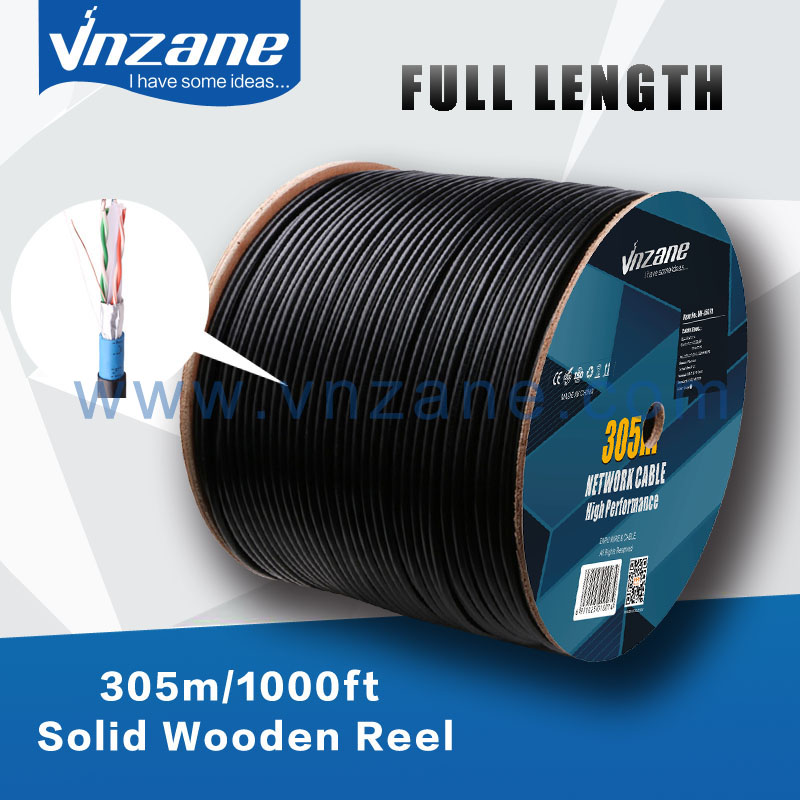

Cat6 Outdoor Cable FTP VN-L161
Description
Instruction
Cat 6 cable transmission supply 2.5 times more than Cat5e high speed bandwidth, ACR value 300% more than Cat5e, Used for high speed lan network system, meet to 250Mhz signal band transmission, cross separated frame design improve the NEXT and impedance charateristic, increase the bandwidth and SNR surplus capacity.
Application
Wiring cable for integrated network and CCTV system
Electrical Specification
Dielectric strength | 2.5kv dc-2econds |
Conductor resistance | Max.9.38ohm/100mt at 20℃ |
Max ring resistance | 16.8 ohm/100mt at 20℃ |
Max mutual capacitance | 530pf/100m |
Max capacity unbalance | 1100pf/100mt |
Impedance | 100±15%Ω at 1~100MHz |
Data Specifications
Inner Conductor | Solid bare copper |
Conductor Dia. | 23awg*1 |
Insulation | PE |
Insulation Dia. | 0.98±0.02mm |
Inner Jacket | pvc |
Outside Jacket | PE |
Nominal OD. | 6.5±0.2mm |
Pairs Color Code | |
Pair1 | Blue-white/blue |
Pair2 | Orange-white/orange |
Pair3 | Green-white/orange |
Pair4 | Brown-white/brown |
Frequency (Mhz) | Return Loss (dB) | Attenuation (dB/100m) | NEXT (dB) | PS-NEXT (dB) | ELFEXT (dB) | PS-ELFEXT (dB) |
1 | 20.0 | 1.9 | 74.0 | 65.0 | 68.0 | 65.0 |
4 | 23.0 | 3.7 | 65.0 | 53.0 | 56.0 | 53.0 |
8 | 24.5 | 5.3 | 60.7 | 46.9 | 49.9 | 46.9 |
10 | 25.0 | 5.9 | 59.0 | 45.0 | 48.0 | 45.0 |
16 | 25.0 | 7.5 | 56.0 | 40.9 | 43.9 | 40.9 |
20 | 25.0 | 8.4 | 55.0 | 39.0 | 42.0 | 39.0 |
25 | 24.3 | 9.5 | 53.3 | 37.0 | 40.0 | 37.0 |
31.25 | 23.6 | 10.6 | 52.0 | 35.0 | 38.1 | 35.0 |
62.5 | 21.5 | 15.4 | 47.0 | 29.1 | 32.1 | 29.1 |
100 | 20.1 | 19.8 | 44.0 | 25.0 | 28.0 | 25.0 |
200 | 18.0 | 29 | 40.0 | 19.0 | 22.0 | 19.0 |
250 | 17.3 | 32.8 | 38.0 | 17.0 | 20.0 | 17.0 |
