Description

Application

• • Compatible with: Windows XP / Vista / 7 / 8; Microsoft Surface, Sony Vaio, Dell Inspiron, Lenovo ThinkPad, Acer Chromebook, ViewSonic gTablet, Asus EEE Slate, Asus EEE Pad Transformer, Asus EEE Pad Slider, and more
  • Apple New MacBook 12″, Google ChromeBook Pixel (2015) and Other Type-C Supported Devices
•

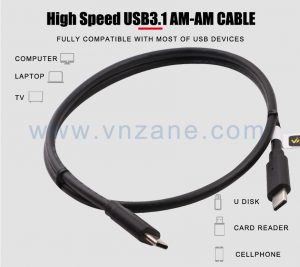

• Product Introduction:

•

  Type-C is the new future-proof connection standard delivering faster speeds, improved power efficiency and a cutting edge, low-profile fully reversible and user-friendly design with its 24 pin terminal.  Support backward compatibility with millions of existing USB 3.0/2.0 devices.

• .Most advanced and versatile type-C connector, single connector for speedy data transferring. Support data, audio and video, power (5 G/S) / power (3A)
• •

  Product Specification:

  Feature USB 3.1 (TYPE C) Date Rate Super speed (5.0Gbps) additional Data Signal SS OUT Differential Signal: 1 Pair SS IN Differential Signal: 1 Pair additional Connector Signals 4 wires: Super speed 2 wires: DP/DM for USB 2.0 3 wires: Vbus/GND*2 Bus Protocol No polling Power Control Configuration at multiple link levels power charging  1.5A

  Description

  Rated temperature 80℃ Conductor Stranded tinned cooper Insulation RoHS compliant PVC/PE Color Blue/Black/White/Gray/Transparent or on request Reference UL2725 & USB3.0 specification

  Electrical Characteristics

  DC resistance (20℃) 28AWG≤237.25Ω/KM Insulation resistance FOAM-PE, PE: AC-100V 100MΩ/KM MIN. at 20℃ Differential Impedance 90±7Ω Contacts Differential Impedance 90±15Ω Intra-pair Skew ≤15ps Insertion loss ≤-25 dB(7.5GHz) NEXT(3.0 to 3.0) ≤-23 dB(3.0-7.5GHz) NEXT(2.0 to 3.0) ≤-15 dB(3.0-7.5GHz) FEXT(2.0 to 3.0) ≤-15 dB(3.0-7.5GHz)

•
•
•
•
