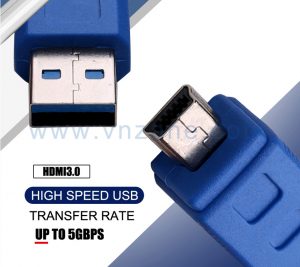

USB 3.0 Cable Male to 10 Pin VN-U503
Description
Application:
External drive
High resolution webcam
Video monitor
USB interface of a digital camera, digital camera
Blu-ray drives
Card reader equipment
Feature
|
Feature |
USB 3.0 |
|
Date Rate |
Super speed (5.0Gbps) additional |
|
Data Signal |
SS OUT Differential Signal: 1 Pair |
|
Connector Signals |
4 wires: Super speed |
|
Bus Protocol |
No polling |
|
Power Control |
Configuration at multiple link levels |
|
Power Supply to Bus |
Max. 900 mA |
Description
|
Rated temperature |
80℃ |
|
Conductor |
Stranded tinned cooper |
|
Insulation |
RoHS compliant PVC/PE |
|
Color |
Blue/Black/White/Gray/Transparent or on request |
|
Reference |
UL2725 & USB3.0 specification |
Electrical Characteristics
|
DC resistance (20℃) |
28AWG≤237.25Ω/KM |
|
Insulation resistance |
FOAM-PE, PE: AC-100V 100MΩ/KM MIN. at 20℃ |
|
Differential Impedance |
90±7Ω |
|
Contacts Differential Impedance |
90±15Ω |
|
Intra-pair Skew |
≤15ps |
|
Insertion loss |
≤-25 dB(7.5GHz) |
|
NEXT(3.0 to 3.0) |
≤-23 dB(3.0-7.5GHz) |
|
NEXT(2.0 to 3.0) |
≤-15 dB(3.0-7.5GHz) |
|
FEXT(2.0 to 3.0) |
≤-15 dB(3.0-7.5GHz) |
