RG6 Coaxial Cable VN-C302
Item No.:VN-C302
Description
Rg6 Cable Made of 100% Copper for Fast Transmission
Application
Coaxial cable RG6, 75Ohm for communication, signal control system, low power video and video signal connections.

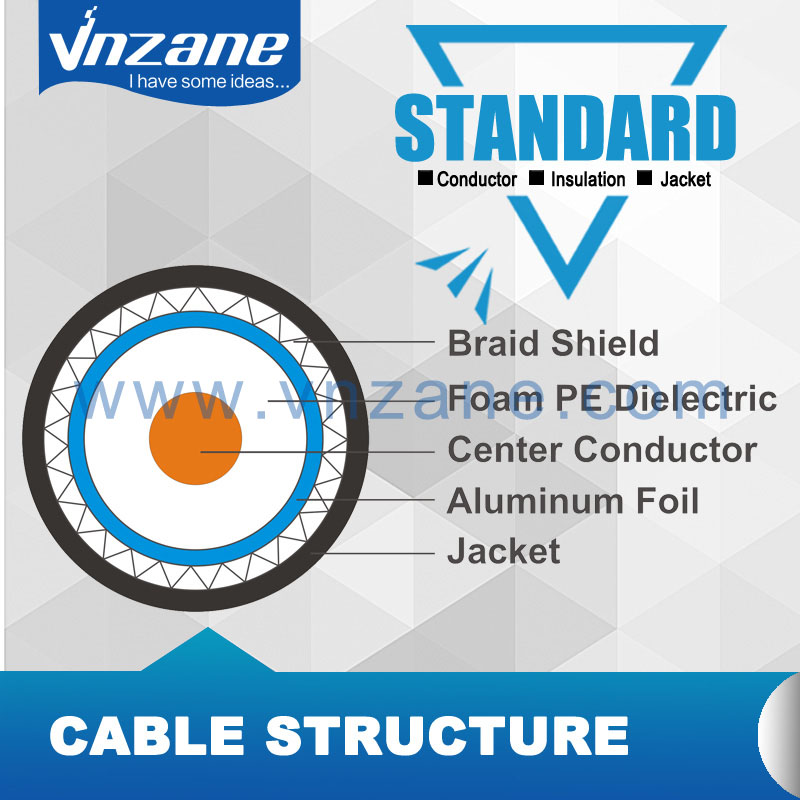

Product Description:
| Conductor: | Solid Bare Copper/Copper Clad Steel |
| Insulation: | FPE/PE |
| Shield: | AL foil |
| Braiding: | Tinned copper wire/copper wire/AL wire |
| Jacket: | PVC |
Technical Charateristics:
| Storage temperature: | -20℃~+75℃(-4°F~+167°F) |
| Pulling tension: | 53.52kg(118lb) |
| Bending radius: | Installation 20 times cable OD |
| Repeated: | 10 times cable OD |
| Conductor Diameter: | 1.02mm |
| Insulation Diameter: | 4.57~4.66mm |
| Centricity: | 85% |
| Outer Diameter: | 6.80~7.00mm |
| Jacket Thickness: | 0.8~0.9mm |
| Color: | Optional |
| Charateristic Impedance | 75±3 Ohm |
| Capacitance | 54±3 pF/M |
| Velocity Ratio | 85% |
| DC Resistance of Inner Conductor | ＜102 Ohm/Km |
| DC Resistance of Outer Conductor | ＜26 Ohm/Km |
| Dielectric Strength | 1500VCA |
| Return Loss at 5~1000MHz | 23 dB |
| Return Loss at 1000~2000MHz | 20 dB |
| Screening Factor at 30~1000MHz | ＞80 dB |
Electricl Charateristics:
| Frequency (MHz) | Attenuation(dB/100M) at 20℃(68°F) |
| 5 | 1.8 |
| 50 | 4.6 |
| 100 | 6.5 |
| 200 | 9 |
| 400 | 13 |
| 800 | 19 |
| 1000 | 21.5 |
| 1450 | 26.2 |
| 1800 | 27.7 |
| 2150 | 31.9 |
